r2parquet is designed around Cloudflare R2, but it can
also interact with the S3 API. Buckets on Amazon S3, and on other
services with an S3 compatible API like MinIO, are addressed as
s3://bucket/path and work with the same functions as
r2://bucket/path: data_to_parquet() and
upload_parquet() write, parquet_tbl() reads,
list_parquet() lists, cache_parquet() caches,
presigned_url() shares, remove_parquet()
removes, and directory uploads get their _manifest.json
like on R2 (see the Metadata and manifests
article). This article walks through uploading private and public data
to S3.
Credentials
s3:// paths use the environment variables that the AWS
command line tools and SDKs use, so a machine that is already set up for
AWS needs nothing new. Set them in ~/.Renviron
(usethis::edit_r_environ() opens it, restart R
afterwards):
AWS_ACCESS_KEY_ID=...
AWS_SECRET_ACCESS_KEY=...
AWS_DEFAULT_REGION=ca-central-1 # or AWS_REGION, the region of the bucket, default us-east-1Temporary credentials come with an AWS_SESSION_TOKEN as
well. The package does not read AWS profiles in ~/.aws/
itself, but the AWS command line tool prints the variables for the
current profile:
The credentials need the s3:GetObject,
s3:PutObject, s3:DeleteObject and
s3:ListBucket permissions on the bucket, and
s3:GetBucketPolicy, s3:PutBucketPolicy and
s3:DeleteBucketPolicy for public access as described
below.
Other S3 compatible services
Services other than Amazon S3 get their endpoint from
AWS_ENDPOINT_URL_S3 or AWS_ENDPOINT_URL, again
the variables AWS tools use. A local MinIO server, for example:
AWS_ACCESS_KEY_ID=minioadmin
AWS_SECRET_ACCESS_KEY=minioadmin
AWS_ENDPOINT_URL=http://localhost:9000With a custom endpoint the bucket goes into the path of the requests
(http://localhost:9000/bucket/key), on Amazon S3 into the
host name
(https://bucket.s3.ca-central-1.amazonaws.com/key);
R2PARQUET_S3_URL_STYLE set to path or
vhost overrides that for services that want the other
style. The package relies on two parts of the S3 API that not every
service implements: conditional writes (If-Match and
If-None-Match), which keep concurrent uploads from
overwriting each other’s manifest updates, and batch deletes. Amazon S3
and MinIO support both.
Private data
By default all uploads the package makes are private. As an example
we take the dissemination block level geographic attributes of Metro
Vancouver from the public census bucket and write them to S3.
data_to_parquet() writes lazy tables without collecting
them. The metadata of the source doesn’t get carried over by itself, it
describes the source rather than the subset, so we pass on the entries
that still apply, its attribution and licence; without
metadata the write would warn that the source has
metadata.
private_path <- paste0(params$s3_root, "/private/van_db_attributes.parquet")
geo_attributes <- parquet_tbl("https://data.mountainmath.ca/census/2021/2021_92-151_X.parquet")
geo_attributes |>
filter(CMAUID == "933") |>
select(DBUID, DAUID, CSDUID, CSDNAME, Population = DBPOP2021, Dwellings = DBTDWELL2021) |>
data_to_parquet(private_path, sort_by = "DBUID",
metadata = parquet_metadata(geo_attributes)[c("languages", "title_en", "title_fr", "attribution_en", "attribution_fr",
"licence_en", "licence_fr", "licence_url_en", "licence_url_fr")])
#> Uploading 85.9 kB in 1 parquet file to s3://mountainmath/test/vignette/private/van_db_attributes.parquet.With credentials the file reads like any other.
parquet_tbl(private_path) |>
group_by(CSDNAME) |>
summarize(Population = sum(Population, na.rm = TRUE), .groups = "drop") |>
arrange(desc(Population)) |>
head(5) |>
collect()
#> # A tibble: 5 × 2
#> CSDNAME Population
#> <chr> <dbl>
#> 1 Vancouver 662248
#> 2 Surrey 568322
#> 3 Burnaby 249125
#> 4 Richmond 209937
#> 5 Langley 161566Without credentials the file is out of reach, see below. To share a
private file without sharing credentials, presigned_url()
signs a URL that grants access to that one file for a limited time, at
most a week. Anyone with the URL can read the file until it expires, so
treat it like a password; we don’t print it here.
shared_url <- presigned_url(private_path, expires = 3600)
nrow(collect(parquet_tbl(shared_url)))
#> [1] 15406Public data
On R2 public access is a property of a bucket, granted by connecting
a custom domain with create_r2_bucket(). On S3 it is
granted by the bucket policy, which can make part of a bucket public:
set_s3_public_access() adds a statement to the policy that
lets everyone download the files below a prefix, and leaves the rest of
the bucket, and other statements of the policy, as they were. It returns
the public URL of the prefix. Amazon S3 takes a while to apply policy
changes everywhere, so for a few minutes anonymous requests may still
get 403 Forbidden now and then.
public_prefix <- paste0(params$s3_root, "/public")
public_url <- set_s3_public_access(public_prefix)
#> The files below s3://mountainmath/test/vignette/public are publicly readable at https://mountainmath.s3.ca-central-1.amazonaws.com/test/vignette/public/.Whether a file is public is then decided by where it gets uploaded.
Here we copy the census metropolitan area boundaries from the public
census bucket, partitioned by province, into the public prefix. The
policy only grants downloads, not listing the bucket, so readers find
the files of the dataset through the _manifest.json that
the upload writes next to them.
cma_source <- parquet_tbl("https://data.mountainmath.ca/census/2021/lcma000b21f_e.parquet")
cma_source |>
data_to_parquet(paste0(public_prefix, "/cma"), partition_by = "PRUID", sort_by = "CMAUID",
metadata = parquet_metadata(cma_source))
#> Uploading 13.1 MB in 12 parquet files to s3://mountainmath/test/vignette/public/cma.Anyone can now read the dataset from its URL, no credentials involved, here the CMAs in British Columbia.
cma_url <- paste0(public_url, "cma/")
bc_cmas <- parquet_tbl(cma_url) |>
filter(PRUID == "59") |>
collect_parquet()
#> Collecting all 9 columns of https://mountainmath.s3.ca-central-1.amazonaws.com/test/vignette/public/cma/. Parquet is stored by column and only the selected columns get downloaded, so select the ones you need: add
#> select(CMAUID, CMAPUID, DGUID, DGUIDP, CMANAME, CMATYPE, LANDAREA, geometry, PRUID)
#> to the query and remove the columns you don't need. This message is shown once per session.

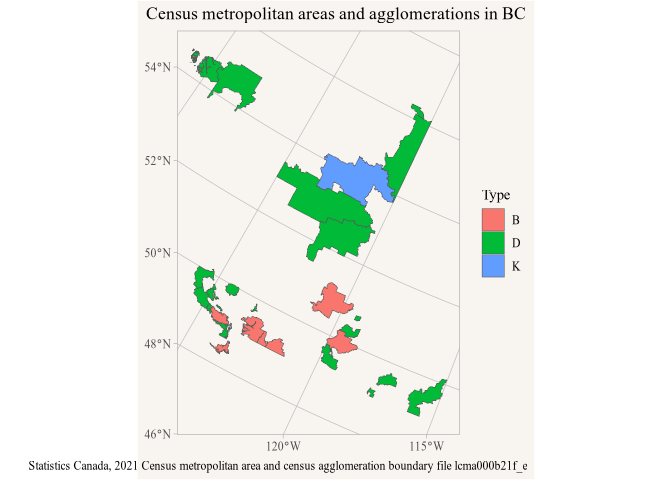

ggplot(bc_cmas) +
geom_sf(aes(fill = CMATYPE)) +
labs(title = "Census metropolitan areas and agglomerations in BC",
fill = "Type", caption = parquet_sources_attribution(bc_cmas))
plot of chunk bc-cmas
Next to it the private file stays out of reach: requests without credentials get 403 Forbidden for it, while the manifest of the public dataset is served.
httr::status_code(httr::HEAD(sub("/public/$", "/private/van_db_attributes.parquet", public_url)))
#> [1] 403
httr::status_code(httr::HEAD(paste0(cma_url, "_manifest.json")))
#> [1] 200The manifest carries the metadata of the dataset, so
parquet_metadata() reads it with a single request, and
list_parquet() lists the files from it.
parquet_metadata(cma_url)
#> <parquet metadata: 19 entries>
#> en fr
#> licence Statistics Canada Open Licence Licence ouverte de Statistiqu…
#> licence_url https://www.statcan.gc.ca/en/… https://www.statcan.gc.ca/fr/…
#> languages en, fr
#> title 2021 Census – Boundary files … Recensement de 2021 – Fichier…
#> source_url https://www12.statcan.gc.ca/c… https://www12.statcan.gc.ca/c…
#> reference_guide https://www12.statcan.gc.ca/c… https://www12.statcan.gc.ca/c…
#> attribution Statistics Canada, 2021 Censu… Statistique Canada, Fichier d…
#> notes One row per provincial part: … Une ligne par partie provinci…
#> columns <9 columns, see below>
#> primary_key CMAPUID
#> geometry_repairs {"columns":"CMAPUID","rows":["35571","47705"]}
#> processing Repaired 2 of 156 geometries that were invalid, via sf::st_ma…
#>
#> columns en fr
#> CMAUID Census metropolitan area or cens… Identificateur unique de la régi…
#> CMAPUID CMA/CA provincial part ID: Provi… Identificateur unique de la part…
#> DGUID Dissemination geography unique i… Identificateur unique de géograp…
#> DGUIDP DGUID of the provincial part, fo… IDUGD de la partie provinciale, …
#> CMANAME CMA/CA name Nom de la RMR/AR
#> CMATYPE CMA/CA type: B census metropolit… Genre de RMR/AR: B région métrop…
#> LANDAREA Land area (km²) Superficie des terres (km²)
#> PRUID Province or territory ID Identificateur unique de la prov…
#> geometry Boundary, Statistics Canada Lamb… Limites, projection conique conf…
list_parquet(cma_url) |>
mutate(path = sub(cma_url, "", path, fixed = TRUE)) |>
select(path, size, cache) |>
head(3)
#> # A tibble: 3 × 3
#> path size cache
#> <chr> <chr> <chr>
#> 1 PRUID=10/data_0.parquet 171.2 kB not cached
#> 2 PRUID=11/data_0.parquet 131.2 kB not cached
#> 3 PRUID=12/data_0.parquet 848.1 kB not cachedPublic URLs can be cached like any other, see the Caching article. Keep public and private data
under separate prefixes: a manifest lists every parquet file below its
directory, so a public manifest above private files would publish their
names and metadata. Manifests of directories above the public prefix,
like the one write_manifest() writes for a whole bucket,
stay private.
Unlike R2, Amazon S3 charges for data downloaded to the internet, and there is no CDN in front of the bucket. For widely used public data that is worth weighing, CloudFront in front of the bucket, or R2, which charges nothing for downloads, are the alternatives.
Cleaning up
remove_parquet() removes files and directories on S3
like on R2, and set_s3_public_access() with
public = FALSE removes the public access again; the bucket
policy goes when nothing else is left in it.
remove_parquet(c(private_path, paste0(public_prefix, "/cma")))
#> Removed 13 files from S3 bucket mountainmath.
set_s3_public_access(public_prefix, public = FALSE)
#> Removed public access to the files below s3://mountainmath/test/vignette/public.
